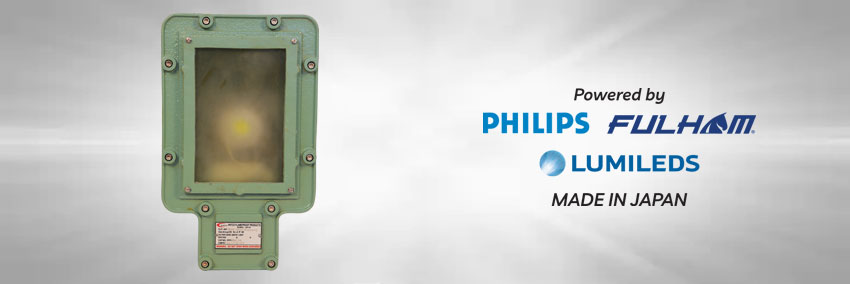

| Catalogue No. |
PFP/BL/02 |
| CHARACTERISTICS |
STANDARD VALUE |
| LUMINARIES |
| Luminaries Wattage |
30 Watt |
| Input Voltage |
230 V |
| Input Frequency |
50 HZ |
| Input Current |
0.5 A |
| Power Factor |
NA |
| Athd. |
CLASS A |
| Efficiency |
84% |
| Light Spreading Angle |
120° |
| Temperature Class |
T6 |
| IP Standard |
IP66 |
| Total Weight |
6.2 Kg |
| Starting Time |
Rapid (0.2 Sec) |
| Guarantee |
2 Years Including FLUX / CCT / CRI |
| LED LAMP - Make LUMILEDS |
| LED Type / No of LED Lamp |
COB / Single Lamp |
| Total Lumen @Tc 25°C |
3354 |
3640 |
4030 |
| Lumen Effiicacy (Lm/ Watt) |
129 lm/W |
140 lm/W |
155 lm/W |
| CCT / Color Rendering index |
3000K / RA 70 |
5000K / RA 70 |
6500K / RA 80 |
| SP Ratio |
2 - 2.25 |
| MacAdam Ellipse Stage |
STEP 3 |
| LED - Wattage / Current / Voltage |
26W / 727ma / 35.8 V |
| Lamp Life |
1,00,000 Hours Min. |
| Certifications / Reports |
LM70, Lm80 / Photo Bio. Test / Vibration Test |
| Test Report of CREE LED Lamp |
Actual Operating test Report for 63,000 Hrs |
| LED DRIVER: PHILIPS & FULHAM |
| Type of Driver |
Constant Current (CC) |
| Input Voltage |
Range 90 VAC ~ 264 VAC |
| Frequency Range |
47 ~ 63 Hz |
| Inrush Current |
COLD START 25A |
| Leakage Current |
< 0.25 mA / 240 VAC |
| Output Protection |
Over Voltage |
| Withstand Voltage |
I/P-0/P:3.75K VAC Min. |
| Surge Protection |
L-N : 2KV |
| OPTICS |
| Optics Type |
PC |
| MOC of Optics |
Polycarbonate |
| Secondary Optics |
Toughened Glass |
| FIXTURES / HEAT SINK |
| Make Of Fixture |
PATCO |
| Certification |
CMRI Certified including LED Lamp |
| MOC Fixtures |
Aluminum Casting |
| Heat Sink Make |
Own Design |
| MOC Heat Sink |
Aluminum Extrusion LM-06 |
| Junction Temperature - TJ |
68°C |
| Case Temperature - TC |
55°C |
